3D Structural Steel Model – Wonersh Residential Extension

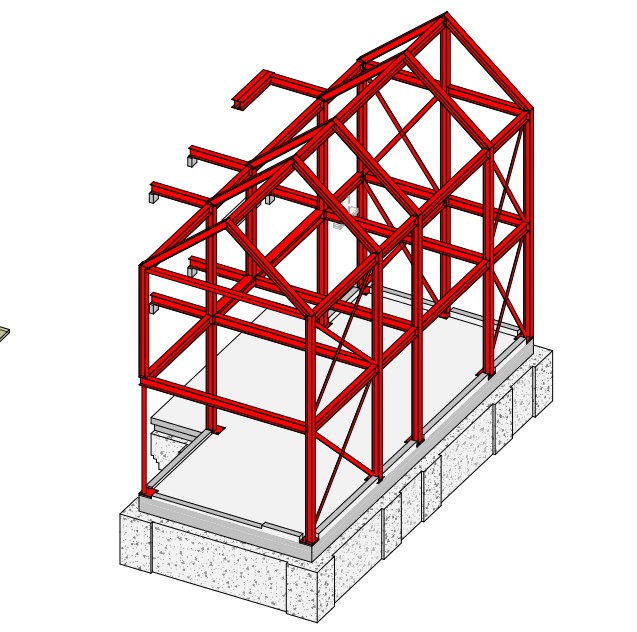

3D render of a red structural steel frame for a two-storey residential extension with pitched roof and concrete foundation base. — Visualising precision. A 3D render of the full steel frame for our Surrey extension project—designed for exact site fit and seamless integration with the concrete base.

A detailed 3D model of the bespoke structural steel frame for a new-build residential extension in Wonersh, Surrey. The model showcases cranked beams, ridge connections, cross bracing, and integrated foundation alignment for accurate on-site installation.
