The Double-Sided Bay rack offers double the available racking in the same physical footprint as the Single-Sided Bay. This makes it perfect for commercial buyers who need to maximize their floor space, but also desire maximum storage. The Dual Bay allows for up to 20 patented ready-to-install CF-1 arms (ten per side) or twelve CFA-1 arms (six per side). Easily adjustable, this efficient solution is tailored to fit your space perfectly.

Its fixed width of 1500mm and height of 4000m make it an ideal size for many companies. With its sleek design, strong build quality and ability to be reorganized quickly, the Dual Bay imposes a distinctly professional look with maximum function.

Purchase the Double-Sided Bay today and effortlessly increase storage throughout your facility while simultaneously saving time and money.

Please enquire about any bespoke options.

What’s in the box?

2 x double-sided up-rights

1 x Bracing unit

16 x CA-1 Arms

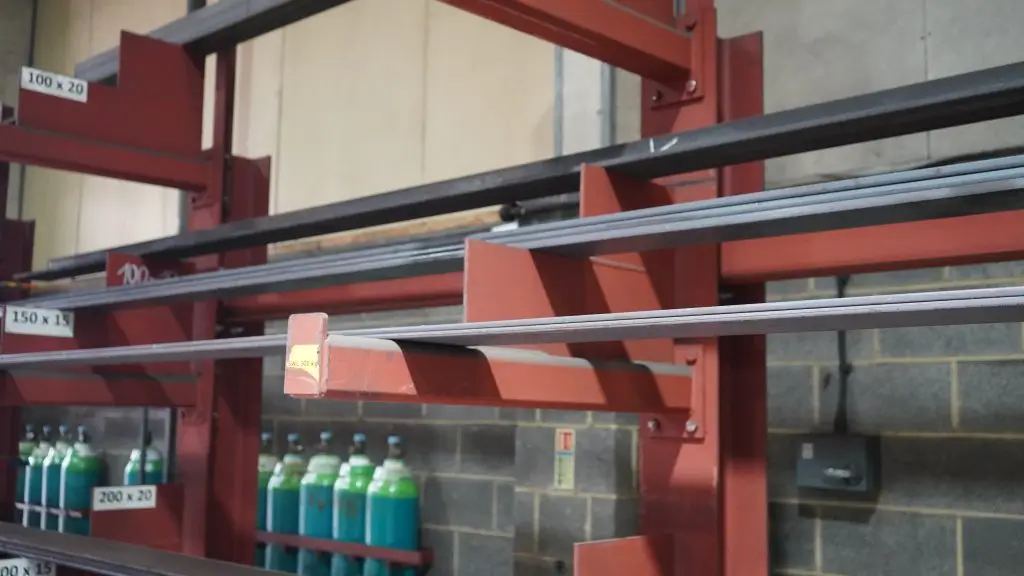

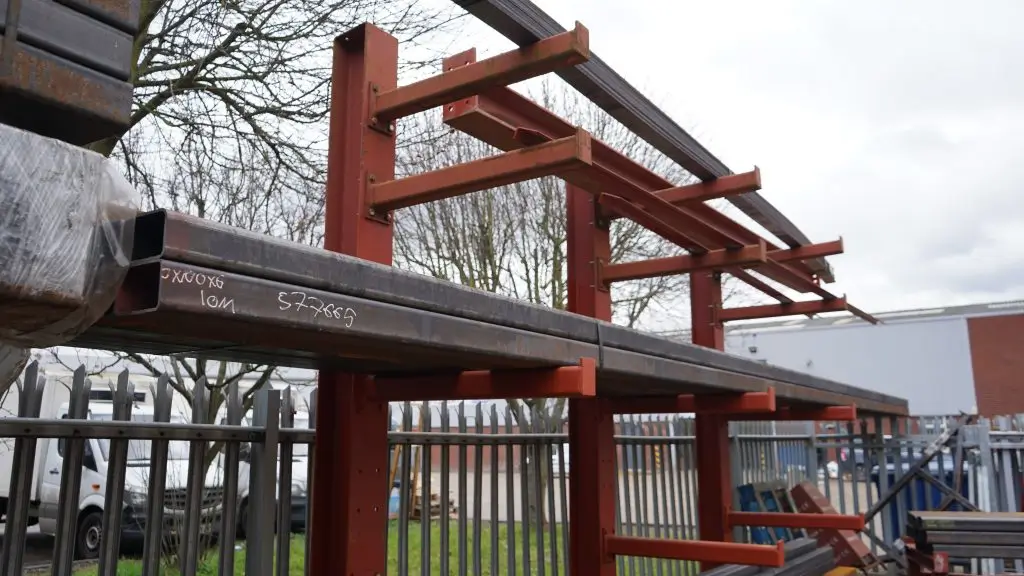

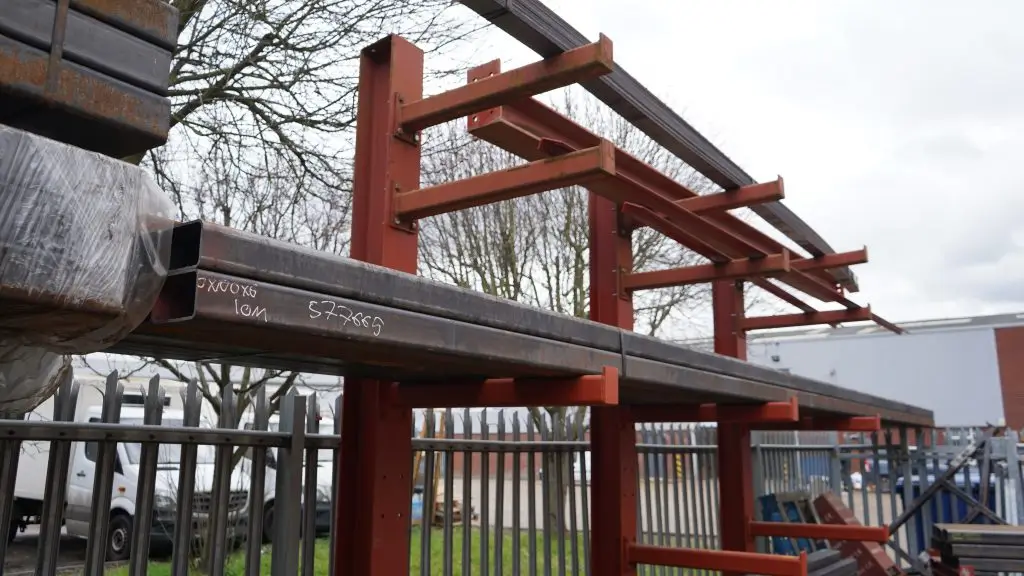

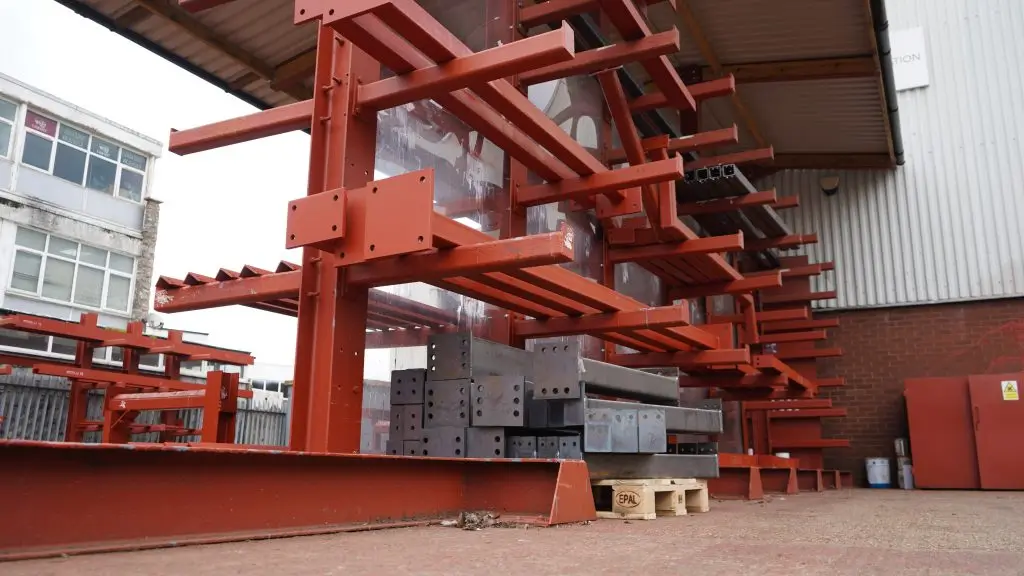

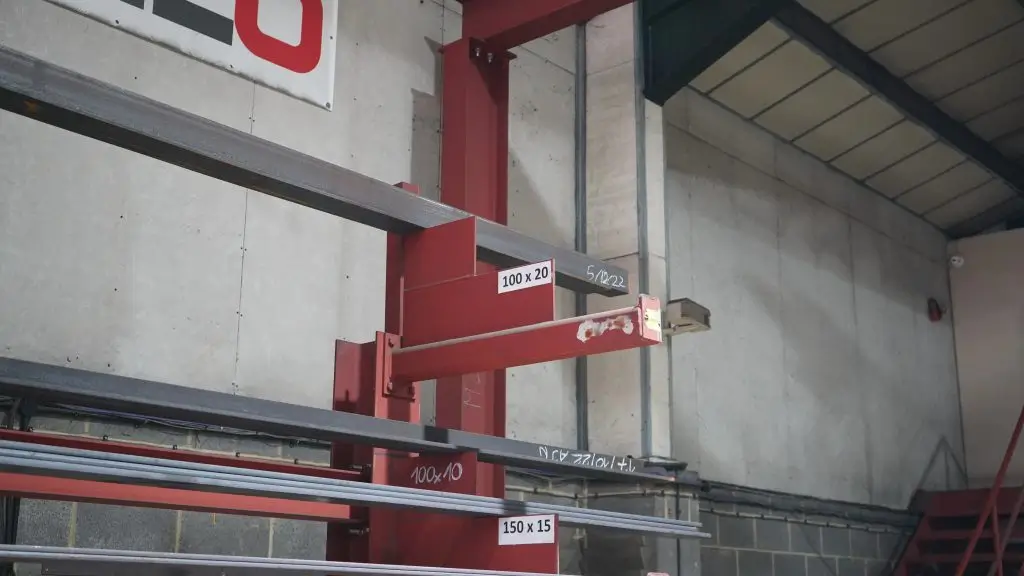

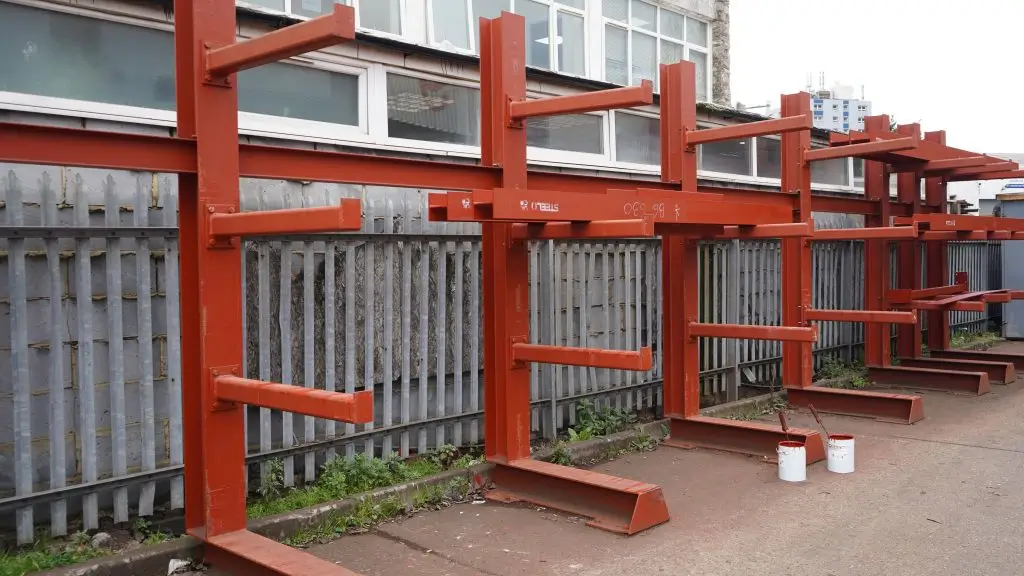

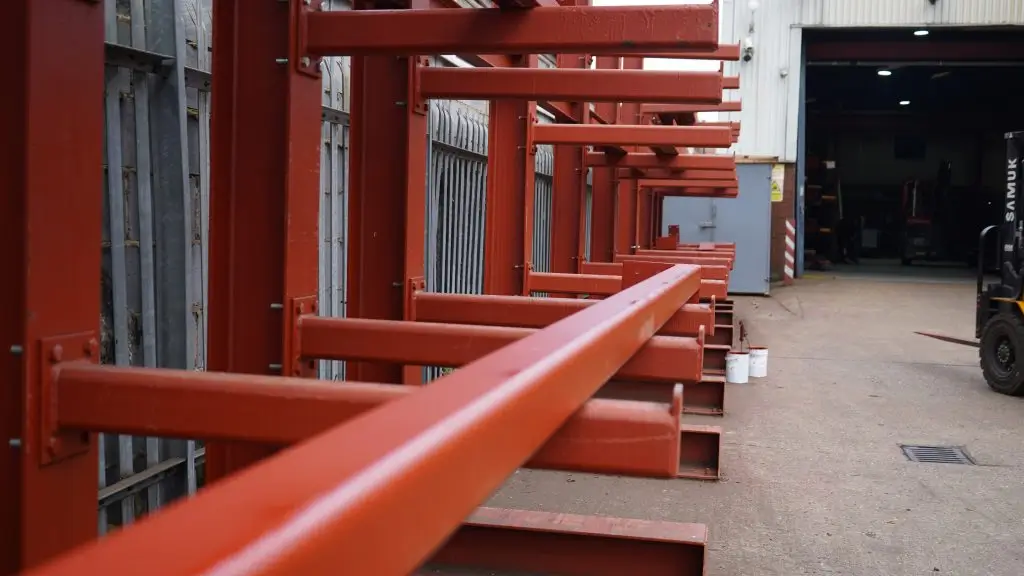

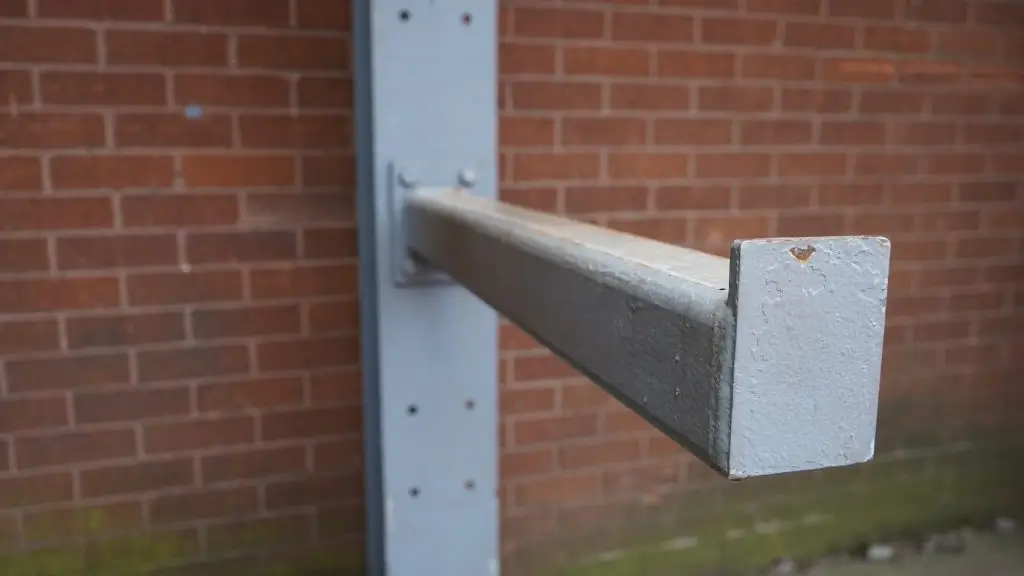

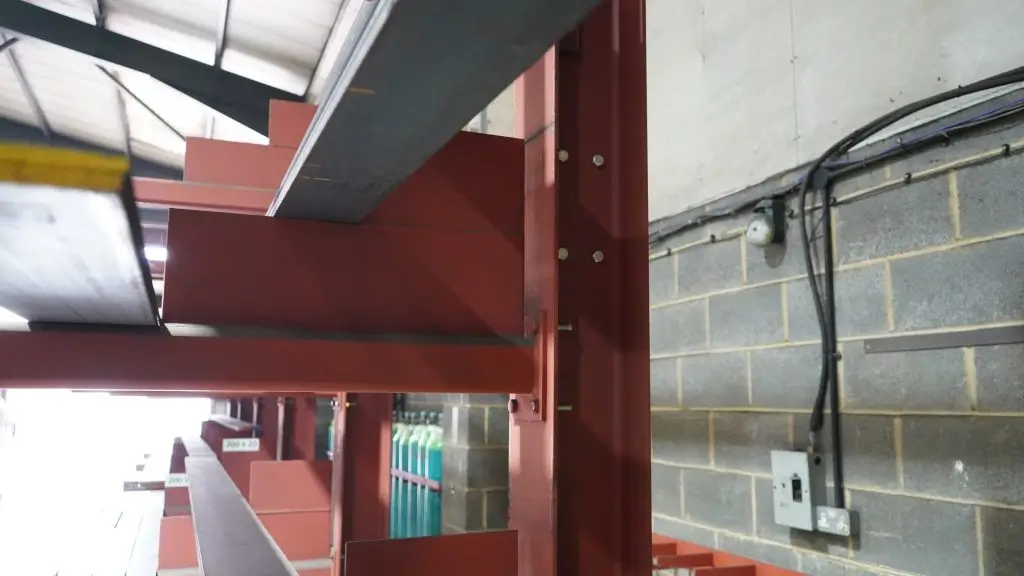

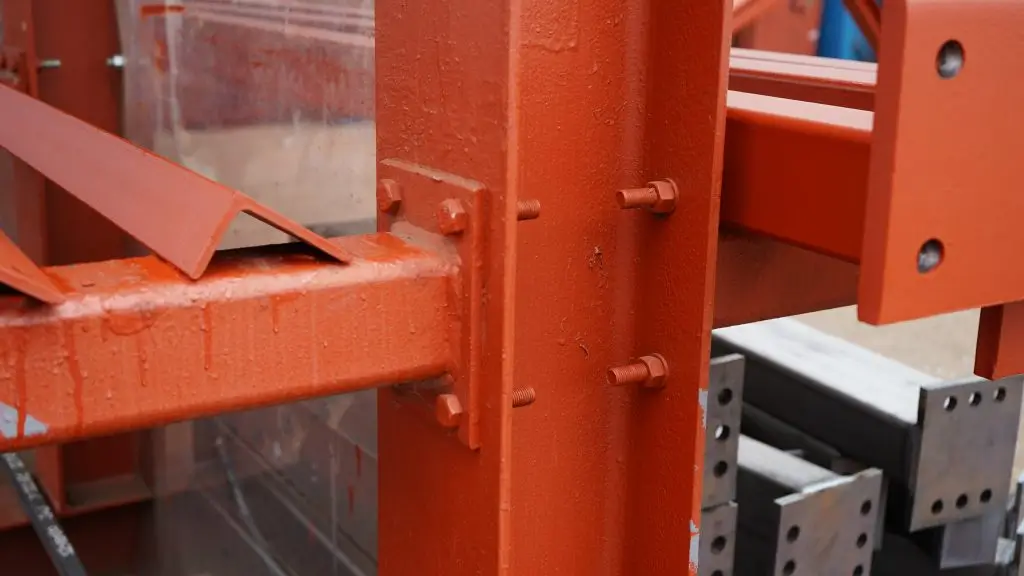

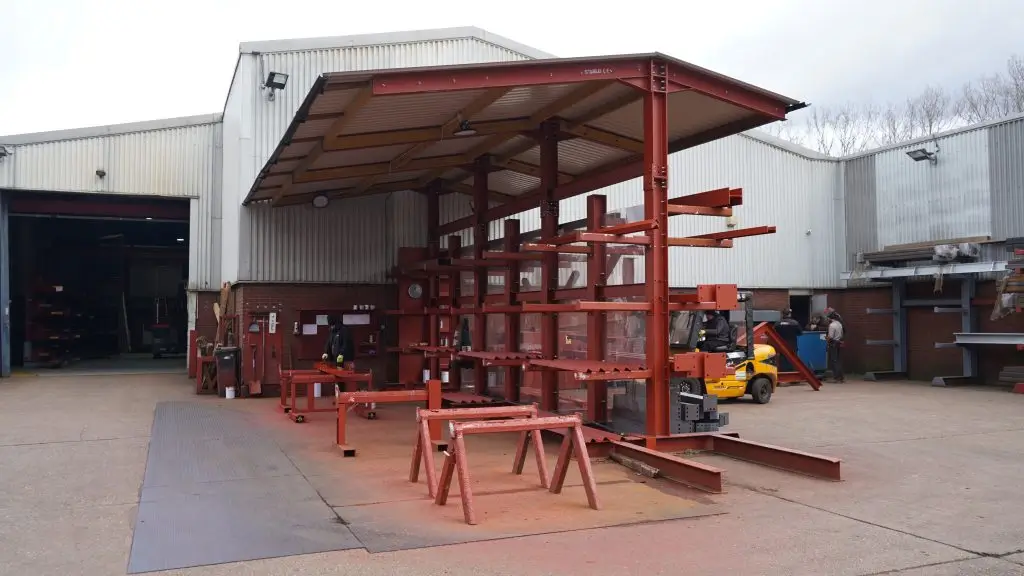

Client photos

Technical

Height 2500mm

Width 1500mm

The racks to be 4.0m high at 1.0m centers with bracing in every other bay. The rack shelves to be 1.0m long cantilever beams supporting 300kg load.

Base beam is allowed to transfer the loads to the industrial slab and to counter the overturning.

Load on rack arms 300kg = 3kN

Allow for dynamic factor 1.5 = 1.5 x 4.5 kN

The bending moment on connection 2.25kNm

Bolt centres 0.15m

Tension in 2 bolts 30kN, that is 15kN per bolt use M16 bolts grade 8.8

LOAD CASE 1 ( LOADS ON ONE SIDE ONLY)

Allow for 9 arms on column with each arm generating unfactored bending moment of 2.25kNm per arm
Unfactored bending moment on column 9×2.25=20.25kNm
Factored moment M=20.3kNm x 1.6 = 32kNm (factored)
Factored Vertical load on column 9×4.5kNx1.6=65kN



Bending moment on connection 32.0kNm
Bolt centres 0.25m

Tension in 2 bolts 128kN, that is 60kN per bolt use M20 bolts grade 8.8

Bolt capacity with 12mm steel plate is 110kN per bolt
