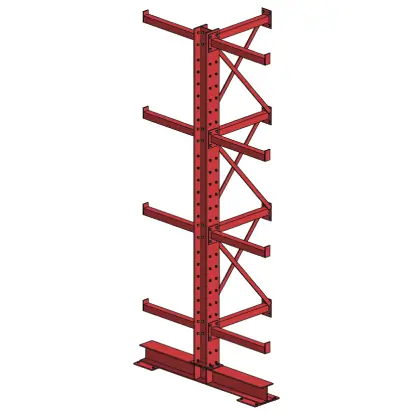

Double-Sided Bay Extension

This revolutionary rack performs the seemingly impossible task of extending your dual bay to hold an additional 20 patented ready-to-install CF-1 arms (ten per side) or twelve CFA-1 arms (six per side).

Constructed with a fixed width of 1500mm and height of 4000m, you can be sure that your storage stays secure without taking up necessary space.

Trust in this top-quality product for all of your storage needs and never worry about running out of room. Get the Double-Sided Bay Extension today – you won’t regret it!

Fixed width of 1500mm and height of 4000m.

Available with 5 working day lead times.

Please enquire about any bespoke options.

£2,399.00 +vat

Enquire Now arrow

What's in the box?

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s

1 x double sided upright

1x Bracing unit

8x CA-1 arms

Technical Specification

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s
  • Unit Size

    Height 4000mm

    Width 1500mm

  • Load Capacity

    The racks to be 4.0m high at 1.0m centers with bracing in every other bay. The rack shelves to be 1.0m long cantilever beams supporting 300kg load.

    Base beam is allowed to transfer the loads to the industrial slab and to counter the overturning.

  • Steel Arms

    Load on rack arms 300kg = 3kN

    Allow for dynamic factor 1.5 = 1.5 x 4.5 kN

    The bending moment on connection 2.25kNm

    Bolt centres 0.15m

    Tension in 2 bolts 30kN, that is 15kN per bolt use M16 bolts grade 8.8

  • Steel Column

    LOAD CASE 1 ( LOADS ON ONE SIDE ONLY)

    Allow for 9 arms on column with each arm generating unfactored bending moment of 2.25kNm per arm
    Unfactored bending moment on column 9×2.25=20.25kNm
    Factored moment M=20.3kNm x 1.6 = 32kNm (factored)
    Factored Vertical load on column 9×4.5kNx1.6=65kN

    Bending moment on connection 32.0kNm
    Bolt centres 0.25m

    Tension in 2 bolts 128kN, that is 60kN per bolt use M20 bolts grade 8.8

    Bolt capacity with 12mm steel plate is 110kN per bolt
